2150/ 2150S Reduction Gear for Concrete Mixer
2150/ 2150S Reduction Gear use for MSO2250/1500 concrete mixer
MEO1500|1000SDYHK REDUCTION GEAR CODE: SCAB-440-245-7L; SCAB-440-245-7R
MA02250/1500SDYHO-P REDUCTION GEAR CODE: SCAB-015Y-245L; SCAB-015Y-245R
MSO1750/1250SDSSK REDUCTION GEAR CODE: SCAB-440-245-1L; SCAB-440-245-1R
MAO2250/1500 REDUCTION GEAR CODE: SCAB-015Y-245L SCAB-015Y-245R
MAO3000/2000 REDUCTION GEAR CODE: SCAB-020Y-245L SCAB-020Y-245R
MAO4500/3000 REDUCTION GEAR CODE: SCAB-030Y-245L SCAB-030Y-245R
MSO2250/1500 REDUCTION GEAR CODE: SCAB-440-245-4
MSO2000/1000 REDUCTION GEAR CODE: SCAB-440-245-4
MEO2000/1000 REDUCTION GEAR CODE: SCAB-440-245-4

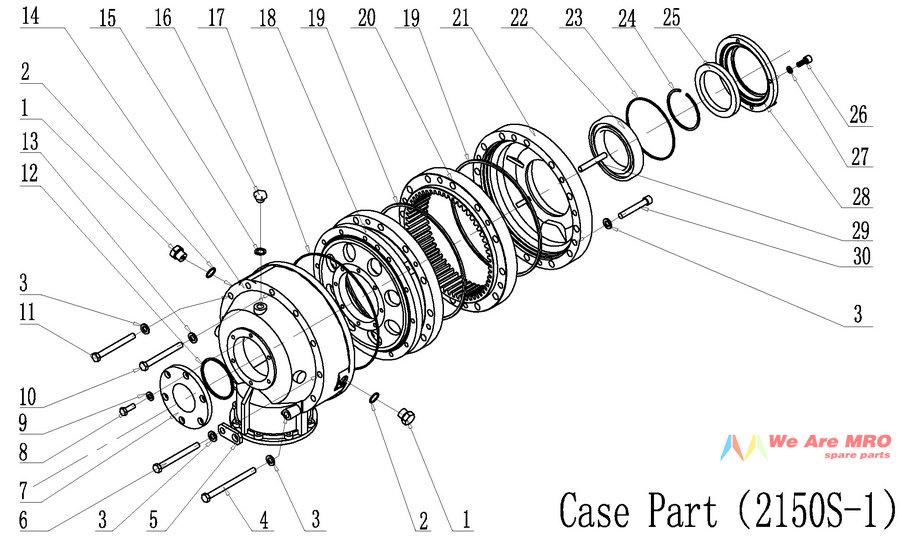

2150S gearbox part list
| No. |
Code |
Description |
Specification |
Qty |
| 1 |
2033507299 |
1/2 Plug |
TS/C322/072/99/G |
2 |
| 2 |
2030109599 |
G1/2 Plug washer |
TS/C310/095/99/B |
2 |
| 3 |
30614014 |
Washer |
M12 |
11 |
| 4 |
30605117 |
Bolt |
M12×150 |
2 |
| 5 |
2031508599 |
Hook |
TS/C150/085/99/A |
1 |
| 6 |
30605212 |
Bolt |
M12×125 |
1 |
| 7 |
2031500199 |
Front Case Cover |
TS/C150/001/99/G |
1 |
| 8 |
30605014 |
Bolt |
M10×30 |
6 |
| 9 |
30614008 |
Washer |
M10 |
6 |
| 10 |
30699009 |
Bolt |
M12×115 |
3 |
| 11 |
30605115 |
Bolt |
M12×115 |
5 |
| 12 |
30302026 |
O-Ring |
N φ93×φ3.5 |
1 |
| 13 |
30614028 |
Washer |
M12 GB/T95-1985 φ13.5×φ24×h2.5 |
3 |
| 14 |
2031502199 |
Front Case |
TS/C150/021/99/B |
1 |
| 15 |
2030109799 |
G3/8 Plug Washer |
TS/C310/097/99/B |
1 |
| 16 |
2020006199 |
3/8 Plug |
HP/B/S/12/99/F |
1 |
| 17 |
30302059 |
O-Ring |
N φ280×φ2.5 |
1 |
| 18 |
2031502299 |
Middle Case |
TS/C150/022/99/F |
1 |
| 19 |
30302058 |
O-Ring |
N φ275×φ5 |
2 |
| 20 |
2031500799 |
Gear Ring |
TS/C150/007/99/A |
1 |
| 21 |
2031502399 |
Rear Case |
TS/C150/023/99/F |
1 |
| 22 |
30201007 |
Ball Bearing |
GB/T 276-1994 6020 |
1 |
| 23 |
30302048 |
O-Ring |
N φ145.72×φ2.62 |
1 |
| 24 |
30601008 |
Circlip |
φ100 |
1 |
| 25 |
30301051 |
Skeleton Seal（Anyseals） |
N φ100×φ130×13/13 |
1 |
| 26 |
30606116 |
Screw |
M8×25 |
4 |
| 27 |
30614006 |
Washer |
M8 |
4 |
| 28 |
2031500299 |
Rear Case Cover |
TS/C150/002/99/D |
1 |
| 29 |
30603014 |
Pin (Heavy Duty) |
φ12×80 GB/T879.1-2000 |
3 |
| 30 |
30606179 |
Screw |
M12×80 |
3 |
| No. |
Code |
Description |
Specification |
Qty |
| 31 |
2031500999 |
Input Flange |
TS/C150/009/99/A |
1 |
| 32 |
2031505999 |
Nut |
TS/C150/059/99/E |
1 |
| 33 |
2031506999 |
Cover |
TS/C150/069/99/F |
1 |
| 34 |
30606087 |
Screw |
M10×80 |
8 |
| 35 |
30614008 |
Washer |
M10 |
8 |
| 36 |
2031500599 |
Front Case Seal Cover |
TS/C150/005/99/C |
1 |
| 37 |
30301041 |
Skeleton Seal（CORTECO） |
N φ121.8×φ150×13/12 |
1 |
| 38 |
30302049 |
O-Ring |
N φ152.07×φ2.62 |
1 |
| 39 |
2031500399 |
Front Case Bearing Cover |
TS/C150/003/99/C |
1 |
| 40 |
2031506899 |
0.2 Washer |
TS/C150/068/99C |
2 |
| 41 |
30302048 |
O-Ring |
N φ145.72×φ2.62 |
1 |
| 42 |
30202012 |
Roller Bearing |
32312-50 |
1 |
| 43 |
2031501299 |
Sleeve 1 |
TS/C150/012/99/A |
1 |
| 44 |
2031501499 |
Sleeve 0.5washer |
TS/C150/014/99/A |
1 |
|
2031501599 |
Sleeve 0.2washer |
TS/C150/015/99/A |
1 |
|
2031501699 |
Sleeve 0.1washer |
TS/C150/016/99/A |
1 |
|
2031501799 |
Sleeve 0.05washer |
TS/C150/017/99/A |
1 |
| 45 |
2031501399 |
Sleeve 2 |
TS/C150/013/99/A |
1 |
| 46 |
2031507099 |
Input Shaft Sleeve |
TS/C150/070/99/B |
1 |
| 47 |
30204004 |
Roller Bearing |
GB/T297-1994 33216/Q |
1 |
| 48 |
2031506099 |
Input Sleeve |
TS/C150/060/99/B |
1 |
| 49 |
2031501999 |
Bevel Gear 10:35 8620H |
TS/C150/019/99/主 D 从 F |
1 |
| 50 |
30604008 |
Key |
14×45×9 |
2 |

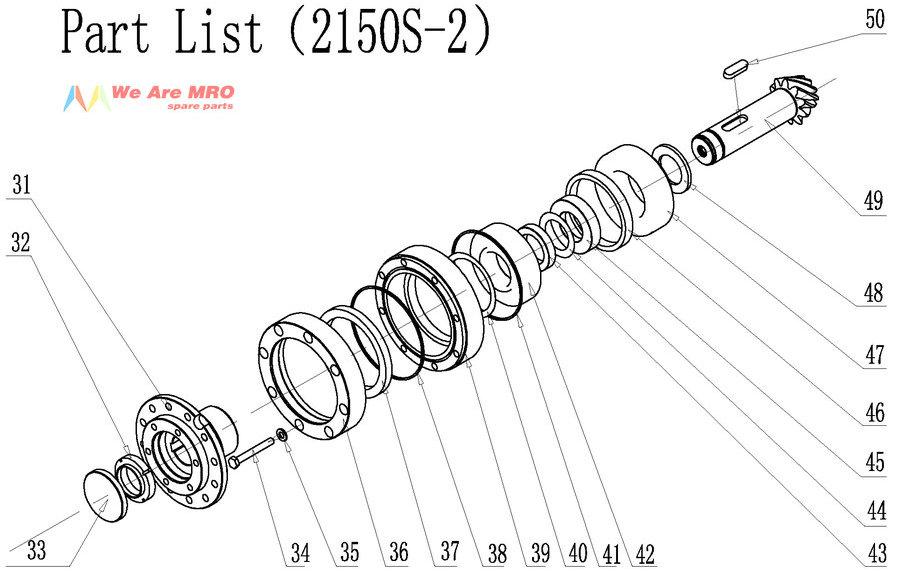

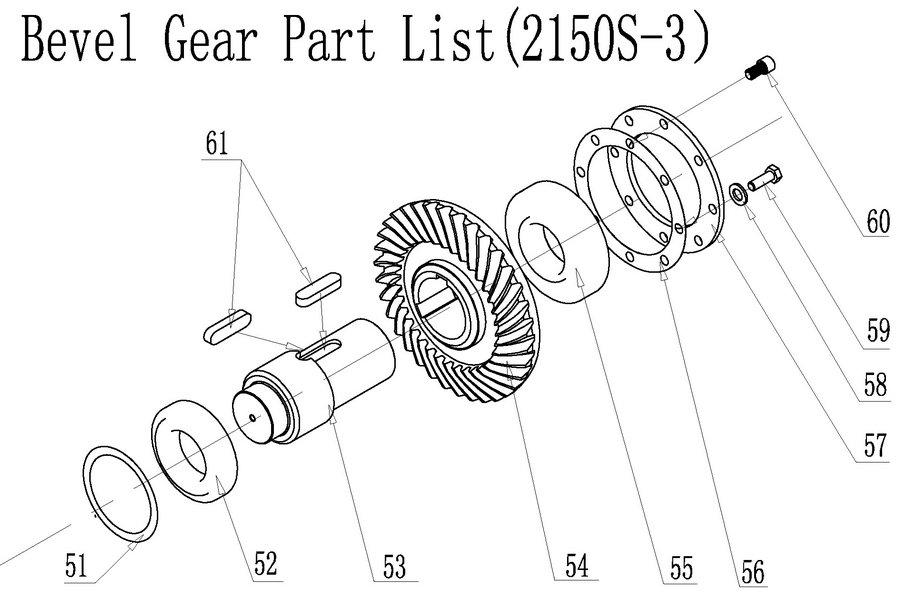

2150 gearbox bevel gear part list
| No. |
Code |
Description |
Specification |
Qty |
| 51 |
2034506499 |
Bearing 0.2Washer |
WS/C200/064/99/C |
7 |
|
2034507099 |
Bearing 0.1Washer |
WS/C200/070/99/B |
1 |
|
2031508199 |
Bearing 0.05Washer |
TS/C150/068/99/C |
1 |
| 52 |
30202013 |
Roller Bearing |
GB/T297-1994 30212A |
1 |
| 53 |
2031502099 |
Bevel Gear Shaft |
TS/C150/020/99/A |
1 |
| 54 |
2031501999 |
Bevel Gear 10:35 8620H |
TS/C150/019/99/主 D 从 F |
1 |
| 55 |
30202014 |
Roller Bearing |
GB/T297-1994 30214A |
1 |
| 56 |
2031505699 |
Plate 0.1Washer |
TS/C150/056/99/C |
1 |
|
2031507399 |
Plate0.2Washer |
TS/C150/073/99/C |
1 |
| 57 |
2031505399 |
Middle Case Plate |
TS/C150/053/99/C |
1 |
| 58 |
30614008 |
Washer |
M10 |
2 |
| 59 |
30605014 |
Bolt |
M10×30 |
2 |
| 60 |
30606043 |
Screw |
M10×20 |
6 |
| 61 |
30604015 |
Key |
16×60×10 |
2 |

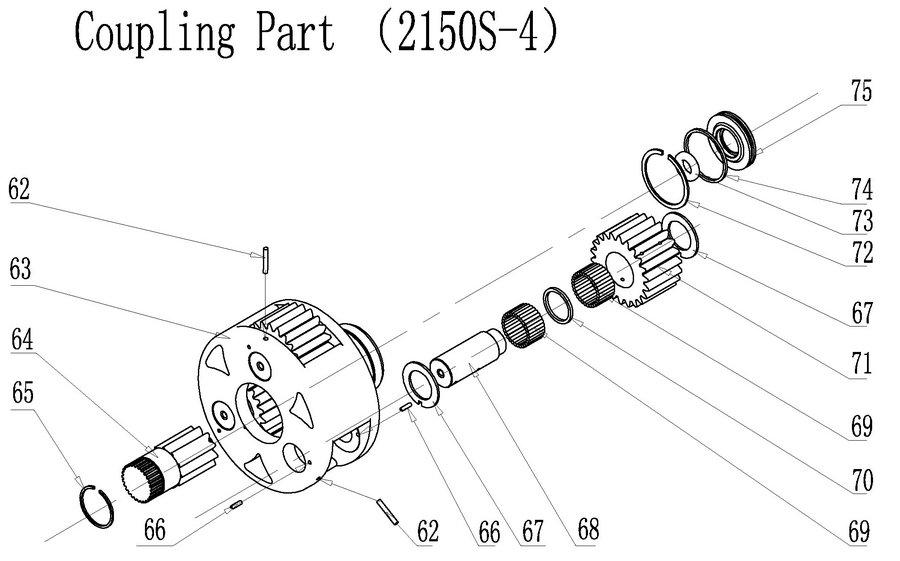

2150 gearbox coupling parts
| No. |
Code |
Description |
Specification |
Qty |
| 62 |
30603007 |
Pin (Heaving Duty) |
φ6×40 GB/T879.1-2000 |
3 |
| 63 |
2031501199 |
Planetary Case |
TS/C150/011/99/A |
1 |
| 64 |
2031508899 |
Sun Gear |
TS/C150/088/99/A |
1 |
| Selection of different speed ratios |
2031504099 |
Sun Gear |
TS/C150/040/99/B |
1 |
| 65 |
30601005 |
Circlip |
φ58 |
1 |
| 66 |
30603003 |
Pin (Heavy Duty) |
φ5×18 GB/T879.1-2000 |
6 |
| 67 |
2031507799 |
Washer |
TS/C150/077/99/D |
6 |
| 68 |
2031505299 |
Planetary Shaft |
TS/C150/052/99/D |
3 |
| 69 |
30209002 |
Roller Pin |
φ5×29.7(30) |
180 |
| 70 |
2031507899 |
Roller Pin Washer |
TS/C150/079/99/C |
3 |
| 71 |
2031507999 |
Planetary Gear |
TS/C150/079/99/K |
3 |
| 72 |
30602007 |
Circlip |
φ82 |
1 |
| 73 |
2031508699 |
Insert |
TS/C150/086/99/A |
1 |
| 74 |
20302067 |
O-Ring |
N φ72×φ3.5 |
1 |
| 75 |
2031500899 |
Cover |
TS/C150/008/99/A |
1 |
2150S Spare Parts (subject to wear) List
| No. |
Code |
Description |
Specification |
Qty |
| 1 |
30302026 |
O-Ring |
N φ93×φ3.5 |
1 |
| 2 |
30302059 |
O-Ring |
N φ280×φ2.5 |
1 |
| 3 |
30302058 |
O-Ring |
N φ275×φ5 |
2 |
| 4 |
30302048 |
O-Ring |
N φ145.72×φ2.62 |
2 |
| 5 |
30302049 |
O-Ring |
N φ152.07×φ2.62 |
1 |
| 6 |
20302067 |
O-Ring |
N φ72×φ3.5 |
1 |
| 7 |
30202012 |
Roller Bearing |
32312-50 |
1 |
| 8 |
30204004 |
Roller Bearing |
GB/T297-1994 33216/Q |
1 |
| 9 |
30202013 |
Roller Bearing |
GB/T297-1994 30212A |
1 |
| 10 |
30202014 |
Roller Bearing |
GB/T297-1994 30214A |
1 |
| 11 |
30201007 |
Ball Bearing |
GB/T 276-1994 6020 |
1 |
| 12 |
30209002 |
Roller Pin |
φ5×29.7(30) |
180 |
| 13 |
30301051 |
Skeleton Seal（Anyseals） |
N φ100×φ130×13/13 |
1 |
| 14 |
30301041 |
Skeleton Seal（CORTECO） |
N φ121.8×φ150×13/12 |
1 |
