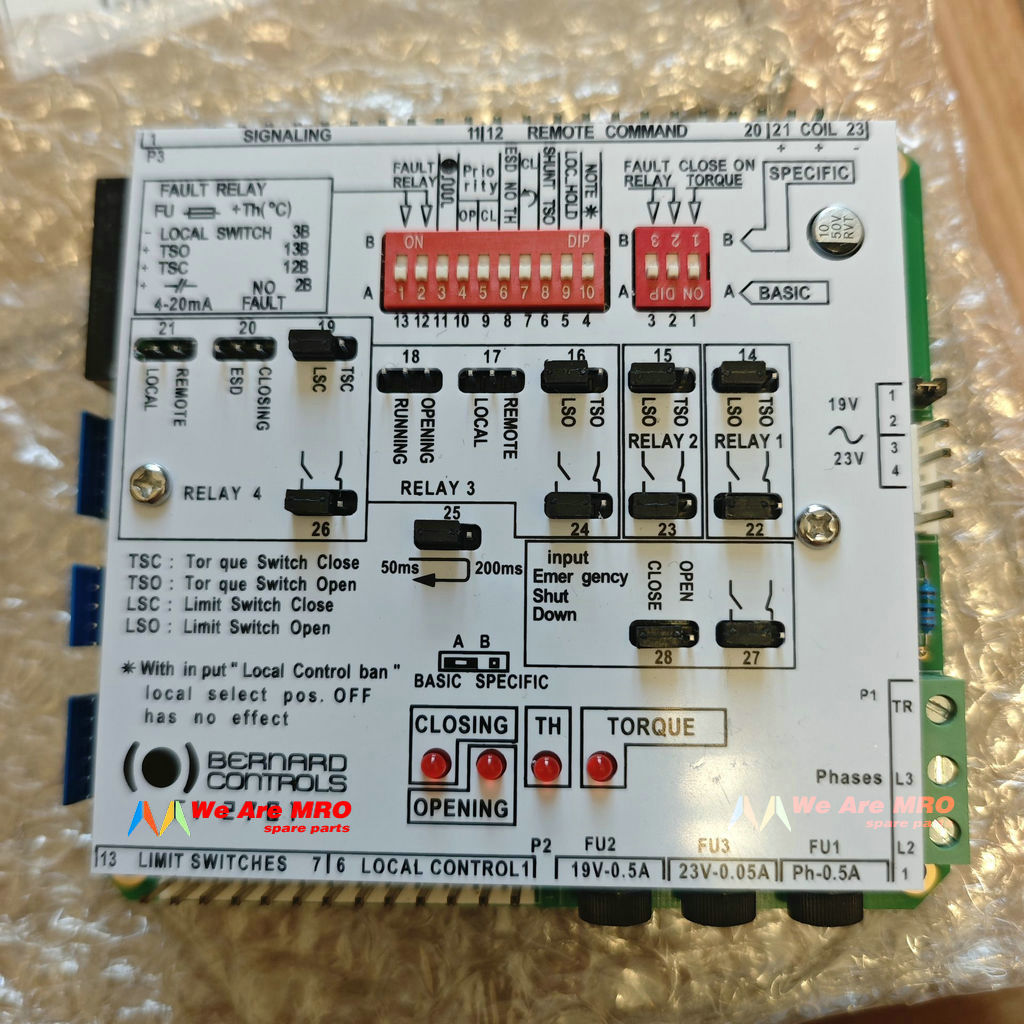

CONTROL BOARD CI2701
(REQUIED THESE CONTROL CARD TO REPAIRE DAMPER ACTUATOR.)
P/N: CI2701
Make: BERDARD
"INTEGRAL +" CONTROLS
BOARD, PRINTED CIRCUIT;F/MOV ACTUATOR,CARD ASSEMBLY,5A,MAIN,PN:CI 2701

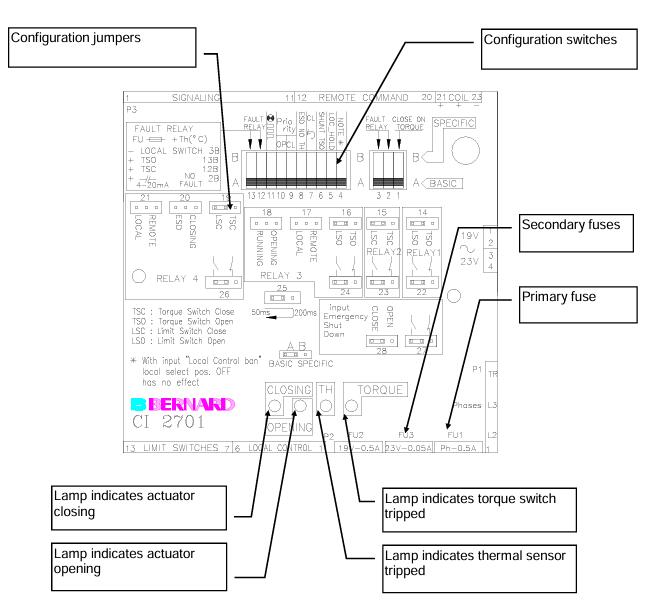

The configuration panel of the card INTEGRAL+ allows to adapt the actuator at each
particular application. Information to be transmitted and actuator behaviour configuration
are set with switches and jumpers on the panel. The actuator is deliverable with standard
configuration, or optional configuration if requested at order.
The configuration can be change on site.
