Spring-applied Brake BFK458-12E

Spring-applied Brake BFK458-12E

Parameter:40NM 40W 205V DC
Braking torque range from 1.5 Nm to 600 Nm
Voltages [Vdc]: 205 V
Insulation class F (155°C)
Protection class up to IP55

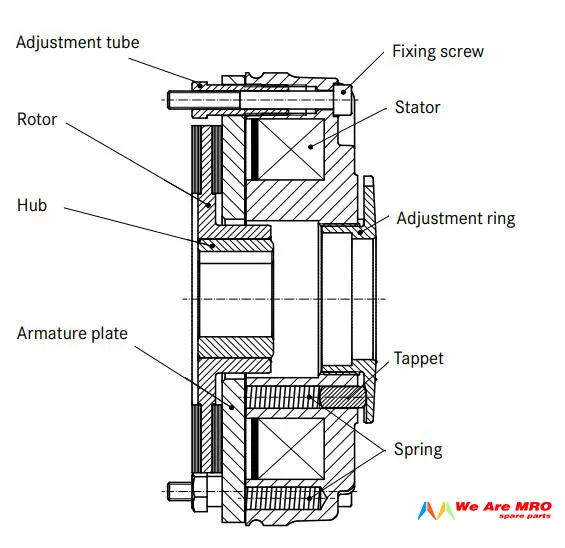

Component: Stator + Rotor + Bushing
Different tail shaft diameters:
Shaft diameter 25mm
Shaft diameter 28mm
Shaft diameter 24mm
Shaft diameter 20mm
Application:
Brake motors; Conveyors; Machine tools; Crane construction; Wood working machines; Automation technology; Mechanical engineering.
