DHF12-220 Two Way Two Position Solenoid Valve
Ordering code
Specifications
|
Max. Working Pressure |
250bar |
|
Flow Max. |
See Performance |
|
Internal Leakage |
0.3ml/min at 210bar 5drops/min |
|
Operation Volt |
12VDC, 24VDC, 110VAC, 220VAC |
|
Min Voltage Requires |
85％ of normal voltage |
|
Filtration of Oil |
20 µm or better |
|
Type of Standard Cavity |
T6-1 |
|
Temperature (℃) |
-30~ 100℃ (Standard Buna Seals) |
|
Standard Block Model |
T6-11*/ 13*/ 14*/ 16* |

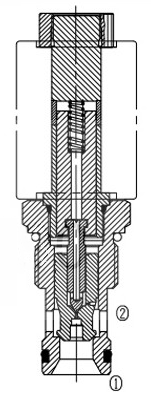

Description of the process
When de-energized, the valve acts as a check valve, allowing flow from ① to ②, while blocking flow form ② to ①; When energized, allowing flow from ② to ①, While ① to ② is severely restricted.

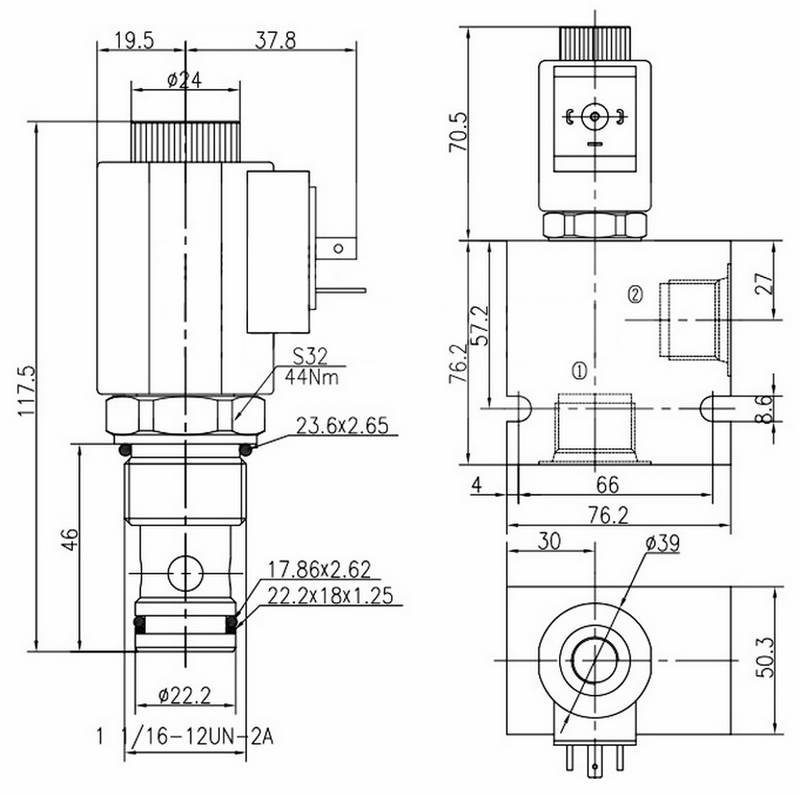

Dimensions
