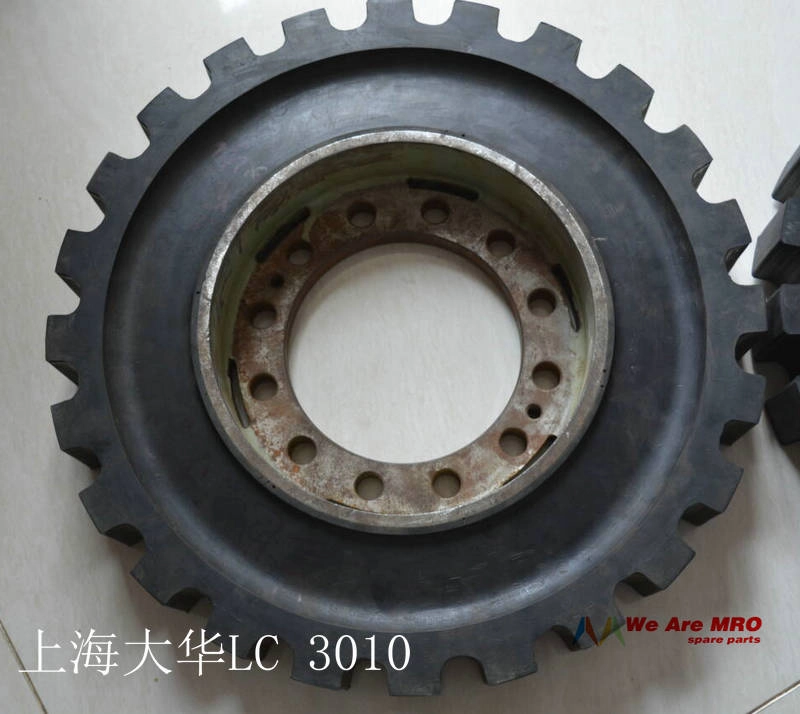

LC type highly Elastic Coupling
The LC series high elasticity coupling is a torsional shear type elastic coupling; Can compensate for axial, radial, and angular displacements of connecting machinery; There are five types of rubber components available for selection, making the coupling meet the requirements of different site systems; The main components of LC series high elasticity couplings are shaft sleeves, flanges, and toothed elastic elements installed between them. This structure has the characteristic of axial insertion, making installation particularly convenient; The LC series high elasticity coupling covers a torque transmission range of 0.25~25.0kNm and is suitable for supporting medium and high-speed oil engine power units and diesel engine generator sets; Suitable for unit power range of 10.0~2000kW.
