AirTAC Precision Regulator GPR40010L
Product feature
- High pressure regulating accuracy and rapid-response.
- Good pressure and flow chart.
- Easy installation, it can be installed independently by bracket or directly with existing filter combination components of module type.
- In addition to high pressure type, the type of medium pressure and lower pressure can be selected.

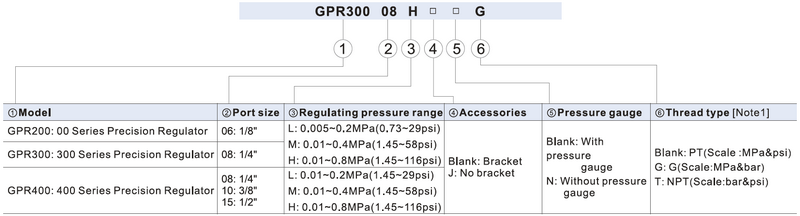

Ordering code
| Model | GPR20006 | GPR30008 | GPR40008 | GPR40010 | GPR40015 | |
| Fluid | Air | |||||
| Port size 【Note1】 | 1/8” | 1/4” | 1/4” | 3/8” | 1/2” | |
| Max. supply pressure | 1.0MPa(145psi) | |||||
| Operating
pressure |
Lower pressure | 0.005-0.2MPa(0.73-29psi) | 0.1~0.2MPa(1.45~29psi) | |||
| Medium pressure | 0.01~0.4MPa(1.45~58psi) | |||||
| High pressure | 0.01~0.8MPa(1.45~116psi) | |||||
| Sensitivity | Within 0.2%F.S. | |||||
| Repeatability | Within ±0.5%F.S. | |||||
| Air consumption(ANR) | ≤4L/min | ≤4L/min | ≤9.5L/min | ≤11.5L/min | ||
| Temperature range | -20~70℃(Unfreeze) | |||||
| Weight | 144g | 336g | 717g | |||
Models
GPR40010L, GPR40010M, GPR40010H, GPR40010HJN.

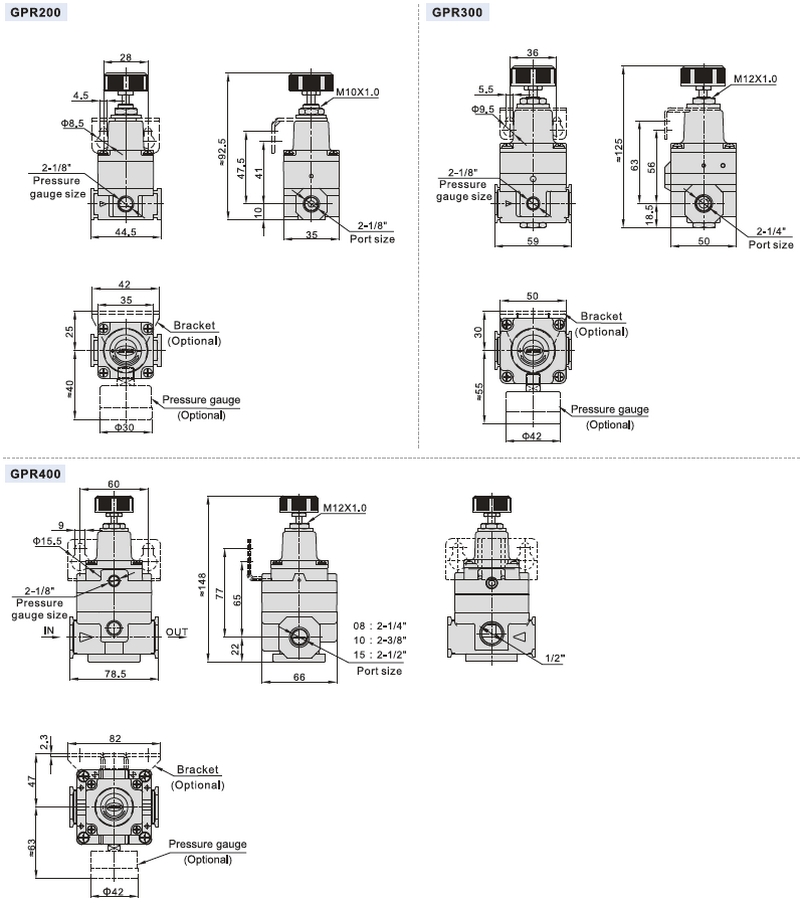

Dimensions
