GVE20L Rectifier
Bridge rectifier: GVE20L
Rated voltage: 230VAC
Max. permissible voltage range: 110V…275V+10%
Output voltage: 205VDC (UDC=UACX0.9)
Rated current up to 40℃： 1.5A
Rated current up to 75℃： 1.0A
DC switch-off: by external contact or current measuring relay possible

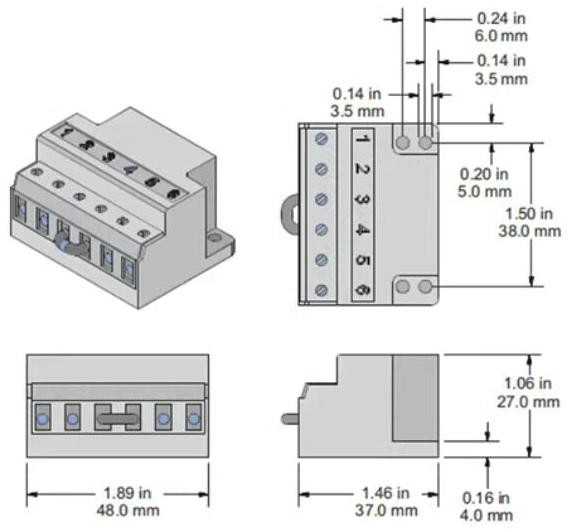

Dimensions
