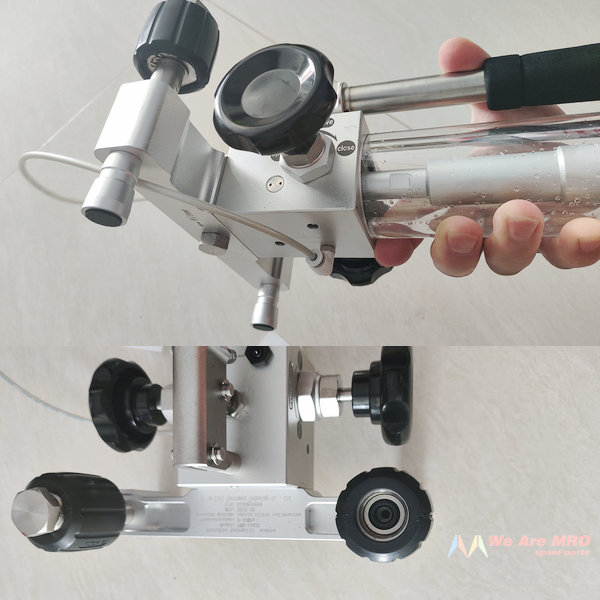

Hydraulic Pressure Test Pump
Hydraulic Pressure Test Pump is a hand operated pressure pump designed to generate pressure to 60Mpa. This pump incorporates a dual-piston system which is ideal for filling large volume workload with the hand pump and providing smooth increase and decrease of pressure with the fine adjustment. The Hydraulic Pressure Test Pump incorporates an isolation valve which isolates the calibration volume from the check valve associated with the hand pump. Because the check valve can often be a source of leaks and maintenance, the isolation valve provides more stable measurements and reduces potential maintenance of the pump. Two hand-tight quick connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches.
Technical Parameter
Pressure measuring medium: purified water or special oil (one of two)
Service temperature: 0~ 50 ℃
Overall dimension: 300 × 220 × 180
Instrument weight: 3.9kg
Pressure range: 0 ~60 MPa
Hand-tight connectors for both test gauge and reference gauge. Standard configuration: M20X1.5 female
Optional:1/4NPT female, 1/2NPT female, 1/4BSP female, 1/2BSP female
