LX-10Kpa intelligent micro pressure controller
LX-10Kpa intelligent micro pressure controller is a new type of digital display micro pressure control instrument specially developed for the micro positive pressure device of enclosed busbar in power plants
This product uses high-precision sensors to accurately display the measured micro air pressure value. The measured air pressure value and the upper and lower pressure adjustment values are all displayed in digital format. The range of upper and lower pressure setting values is adjustable from 0-3300pa.
The power supply adopts two input methods: AC 220V or DC 24V, providing users with convenient choices. The pneumatic sampling port is designed with a new type of quick plug and unplug interface, making the installation and disassembly of the gas circuit simple and convenient.

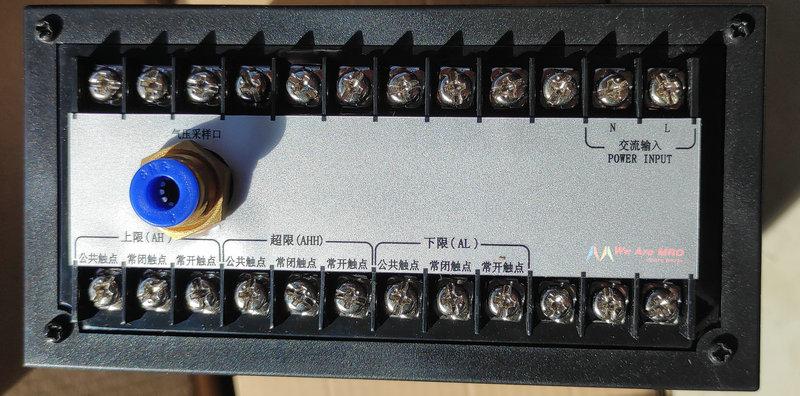

Three sets of output control units, namely: upper limit common electric shock, upper limit normally open contact, and upper limit normally closed contact; Lower limit common electric shock, lower limit normally open contact, and lower limit normally closed contact; Over limit common contact, over limit normally open contact, over limit normally closed contact. The contact current is 3A
Overall dimension (mm) 75×150×140
Gas sampling quick installation interface with an inner diameter of 6mm
Weight (Kg) 0.5
