AirTAC MBL20X15SCA Mini Cylinder
Product feature
- Manufactured by our enterprise.
- Riveted structure is adopted to connect front and bak cover and cylinder tube to make it credibility.
- Piston adopts heterogeneous two-way seal structure.
- There are several modes of back cover, which makes the installation of cylinder more convenient.
- There are cylinders and mounting accessories with several specifications for your choice.

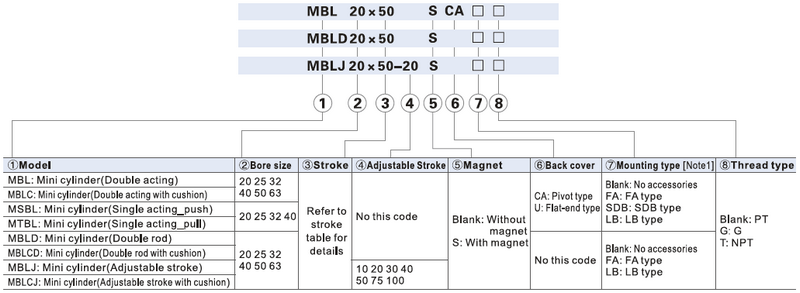

Ordering code
Specification
| Bore size(mm) | 20 | 25 | 32 | 40 | 50 | 63 | |
| Acting
type |
MSBL/MTBL | Single acting | ━ | ||||
| MBL/MBLD/MBLJ | Double acting | ||||||
| MBLC/MBLCD/MBLCJ | Double acting with cushion | ||||||
| Fluid | Air(to be filtered by 40µm filter element) | ||||||
| Operating
pressure |
Double acting | 0.15~1.0MPa(22~145psi)(1.5~10.0bar) | |||||
| Single acting | 0.2~1.0MPa(28~145psi)(2.0~10.0bar) | ━ | |||||
| Proof pressure | 1.5MPa(215psi)(15bar) | ||||||
| Temperature ℃ | -20~70 | ||||||
| Speed range mm/s | Double acting: 30~800 Single acting: 50~800 | ||||||
| Stroke tolerance | 0~150 0 1.0 ＞150 0 1.5 | ||||||
| Cushion type | MBLC, MBLCD, MBLCJ: Adjustable cushion; Others: Bumper | ||||||
| Port size [Note1] | 1/8” | 1/4” | |||||
Stroke
| Bore size (mm) | Standard stroke (mm) | Max.std stroke | Max. stroke | |
| MBL
MBLC |
20/25 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 |
| 32/40 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 | |
| 50/63 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 | |
| MBLD
MBLJ MBLCD MBLCJ |
20/25 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 | 300 | ━ |
| 32/40 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | ━ | |
| 50/63 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | ━ | |
| MSBL
|
20/25 | 10 15 20 25 30 40 50 60 75 80 100 125 150 | ━ | ━ |
| 32/40 | 10 15 20 25 30 40 50 60 75 80 100 125 150 | ━ | ━ | |
| MTBL | 20/25 | 10 15 20 25 30 40 50 60 75 80 100 | ━ | ━ |
| 32/40 | 10 15 20 25 30 40 50 60 75 80 100 | ━ | ━ | |
Models
Double acting: MBL20X15SCA, MBL20X15CA.
Double acting with cushion: MBLC20X15S.
Single acting▁push: MSBL20X15S.
Single acting▁pull: MTBL20X15S.
Double rod: MBLD20X15S.
Double rod with cushion: MBLCD20X15S.
Adjustable stroke: MBLJ20X15S.
Adjustable stroke with cushion: MBLCJ20X15S.

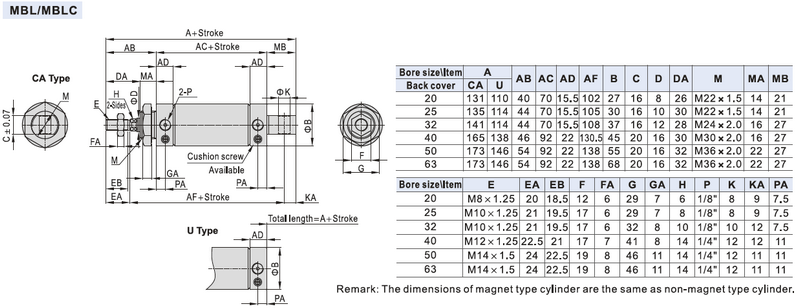

Dimensions
