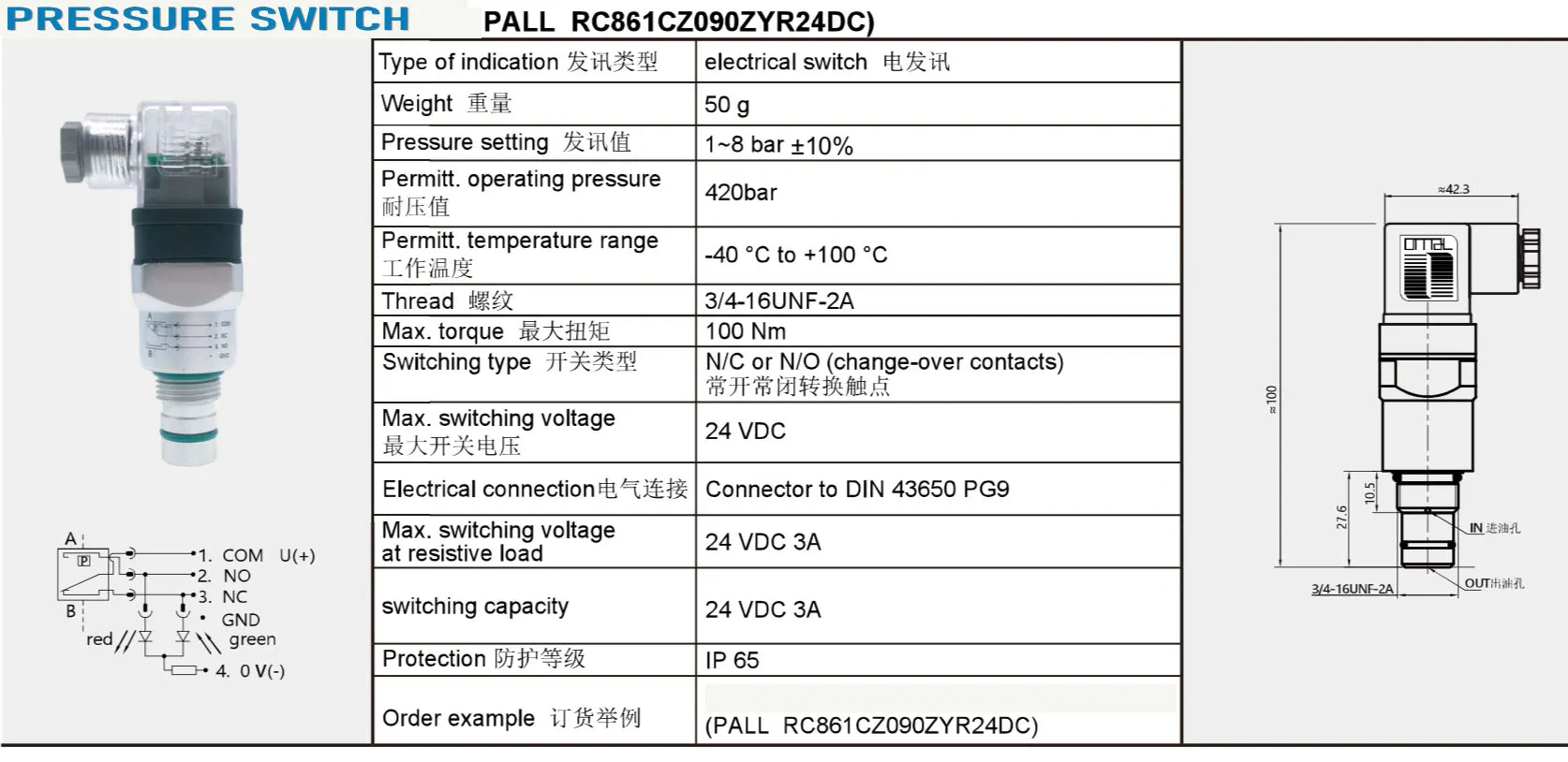

RC861CZ090HYR24DC Differential Pressure Switch
RC861CZ090HYR24DC-LED
Pressure setting 1-8 bar ±10%
Permitt.operating pressure 420bar
Permitt，temperature range -40°C to +100°C
Thread 3/4-16UNF-2A
Max.torque 100 Nm
Switching type N/C or N/O（change-over contacts）
Max.switching voltage 24 VDC
Electrical connection Connector to DIN 43650 PG9
Max.switching voltage at resistive load 24 VDC 3A
switching capacity 24 VDC 3A
Protection IP 65
