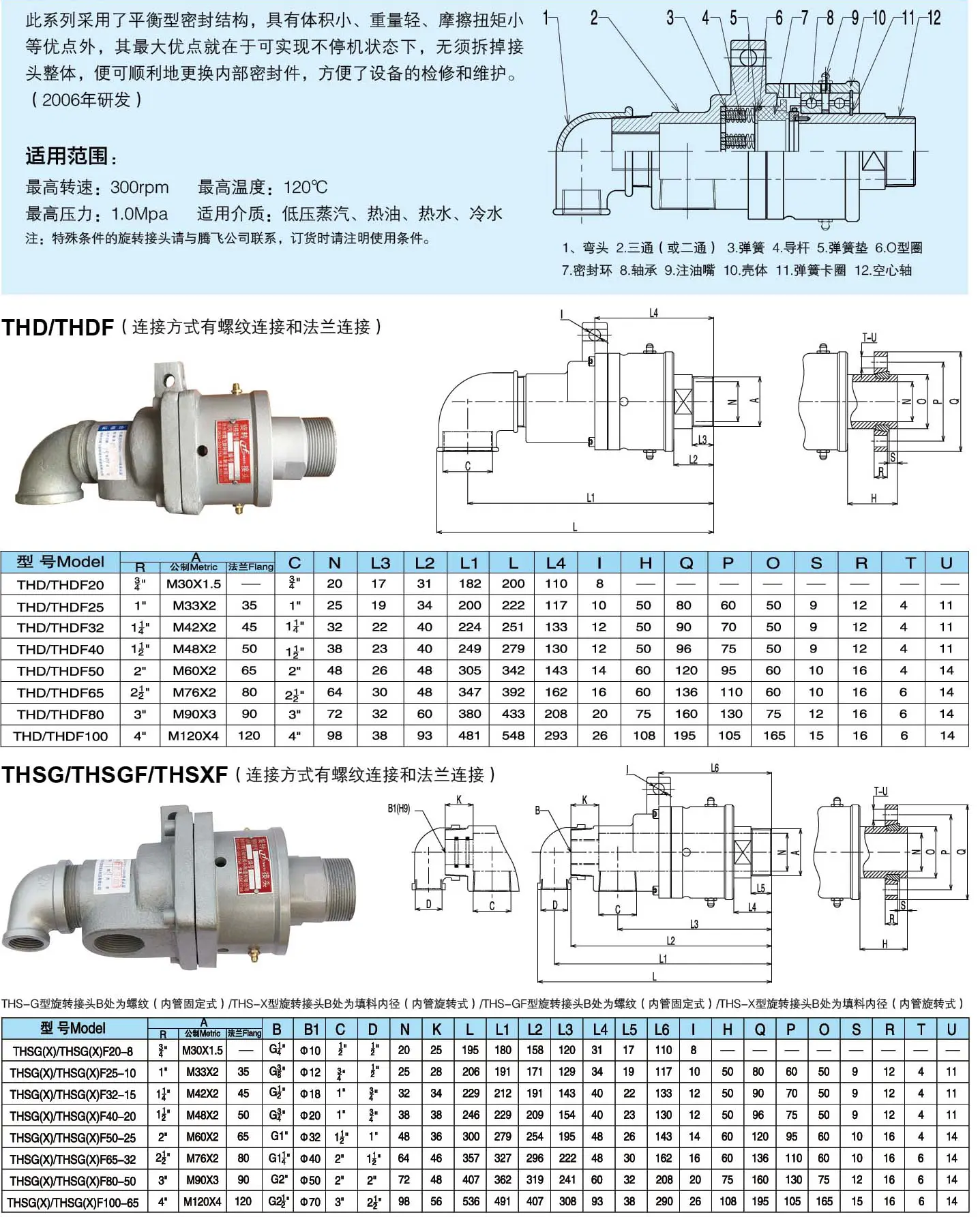

TH Series Rotary Joint
This series adopts the balanced seal structure, with small volume, light weight, small friction torque and other advantages. Its biggest advantage is that it can achieve the smooth replacement of internal seals without removing the whole joint under the condition of no shutdown, which facilitates the overhaul and maintenance of the equipment.
Scope of application:
Max. speed: 300rpm Max. temperature: 120 ℃
Applicable medium: low pressure steam, hot oil, hot water and cold water Note: please contact with Tengfei Company for rotary joint under special conditions. Please indicate the service conditions when ordering.
Max. pressure: 1.0Mpa
THD/THDF (connection modes include threaded connection and flange connection)
Model
THD/THDF20
THD/THDF25
THD/THDF32
THD/THDF40
THD/THDF50
THD/THDF65
THD/THDF80
THD/THDF100
THSG/THSFF/THSFX (connection modes include threaded connection and flange connection)
Model
THSG（X）THSG（X）F20-8
THSG（X）/THSG（X）F25-10
THSG（X）THSG（X）F32-15
THSG（X）THSG（X）F40-20
THSG（X）/THSG（X）F50-25
THSG（X）/THSG（X）F65-32
THSG（X）THSG（X）F80-50
THSG（X）/THSG（X）F100-65
