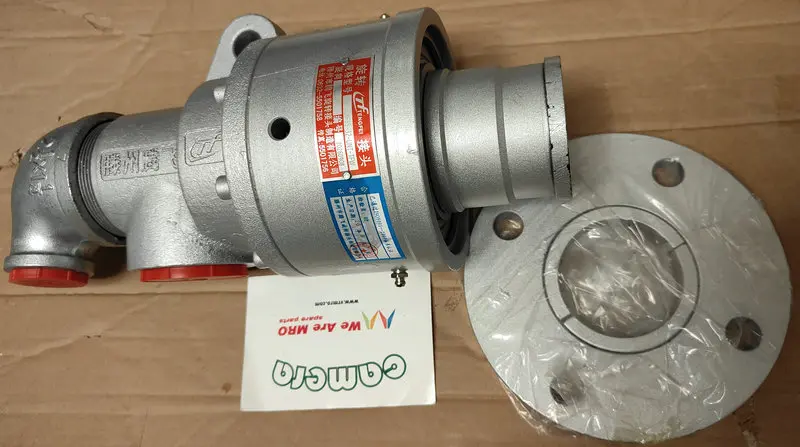

THSXF65-32-UNT-TFW Rotary Joint
THSX/THSXF rotary joint
Scope of application:
Rotational speed: n1000RPM,
Temperature: t<100℃,
Pressure: <1.0MPa,
Medium: water, air, salt

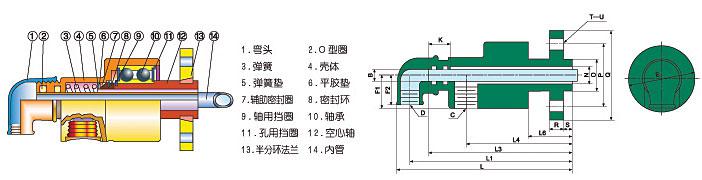

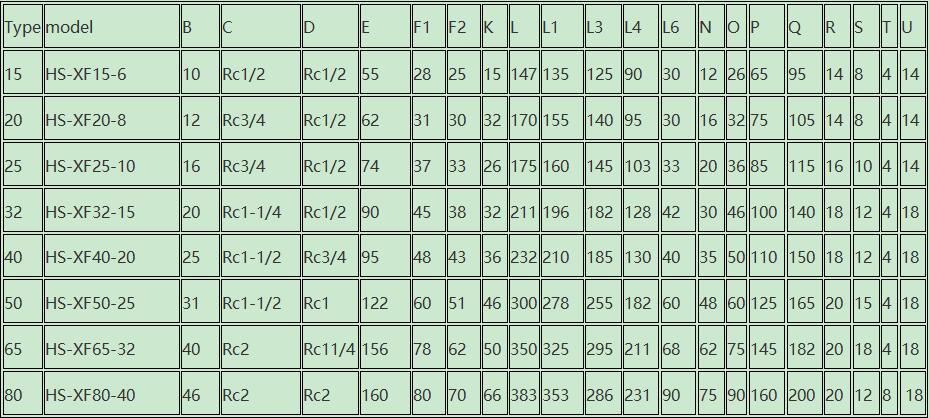

HS-XF bidirectional flow inner tube rotary type – half-split ring flange connection
Circulation mode: two-way circulation
Connection mode: half ring flange connection
Installation type: it is installed at one end of the rotating equipment, the medium inlet and outlet are completed by the rotating joint, and the inner pipe and the hollow shaft rotate synchronously with the equipment.
HS-XF seal not only integrates the features of internal seal (Q type) and rolling bearing support (D type joint), but also makes good use of balanced seal design, so that the working pressure on both sides of the seal ring is balanced, the degree of friction is reduced, and the service time of the rotary joint is prolonged. The hollow shaft is directly connected to the rolls by threads or flanges and is the main element of the swivel joint. The support of the rolling bearing to the hollow shaft greatly reduces the rotation torque, and has the characteristics of sensitive operation, small weight and small space occupation, which is especially suitable for the working state under the premise of strong speed. There are survey holes on the surface, which can be used to find out whether there is loss or loss at the sealing position in time.
