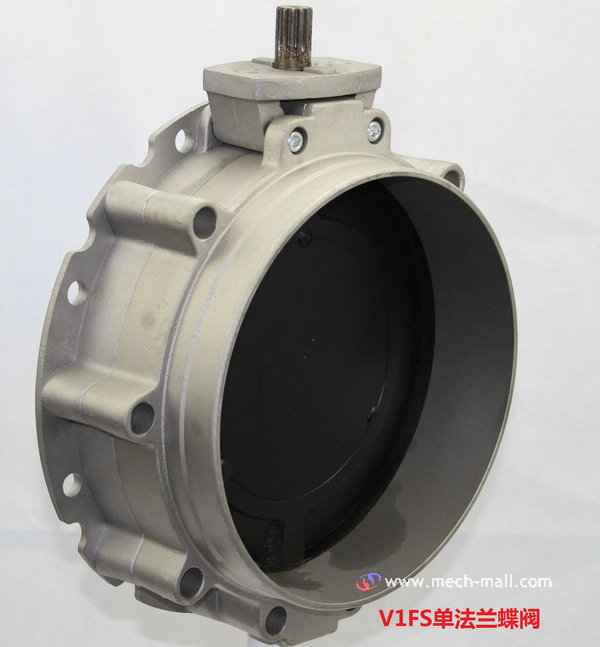

V1FS100GBN Single Flange Type Powder Butterfly Valve
V1FS butterfly valves are mainly used to open and close bins, hoppers and silos containing powdered or granular materials.It can be applied to all powdered and granular materials. The valve uses the gravity of the material to shut off and pneumatically transport dry materials. It can be installed underneath hoppers, bins, silos, spirals or other types of conveyors, as well as pneumatically connected pipelines.
Name: Powder butterfly valve
Model Number: V1FS/V2FS-***GBN
Path: DN100-400
Sealing form: soft seal
Sealing material: rubber NBR
Connection type: flange

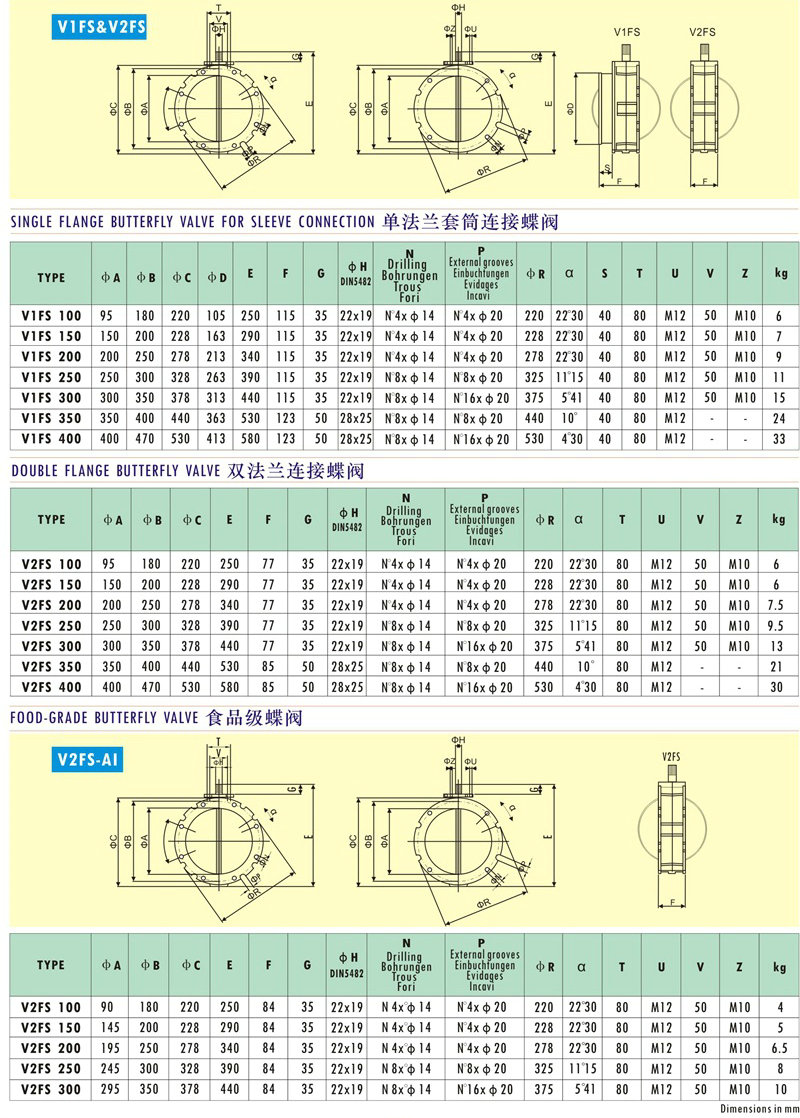

Structure: V1FS Single Flange Type, Double Flange Type
Body material: Alloy aluminum
Valve plate material: ductile iron
