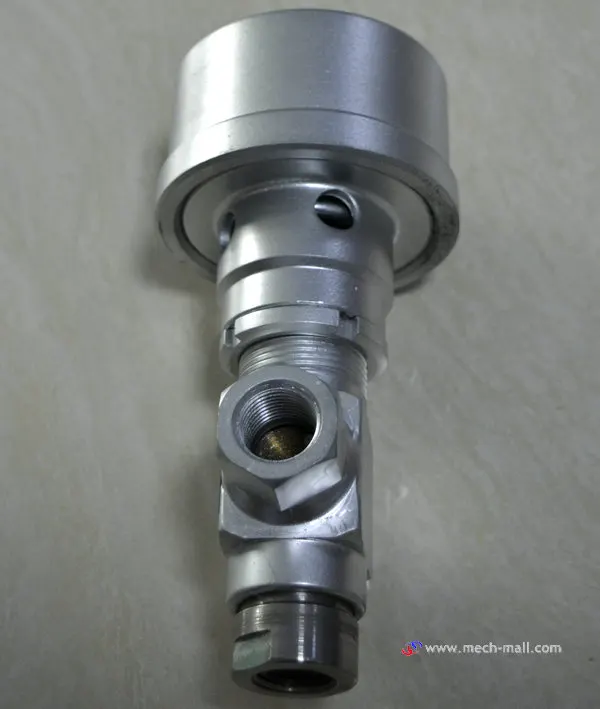

ZSQ-402R DN25 2 WAY PISTON VALVE
Pneumatic two position shut-off valve
Pneumatic piston cutter composed of stainless steel valve body, nodular cast iron cylinder and yoke
Shutoff valve is widely used in steam, hot fluid and cold
On-off control of fluid and other media. Develop a wide range of valves and their
Fittings are mainly for the purpose of reasonable and automatic control of the production of tyres, plastics and their
Vulcanizer for other rubber products.
SPECIFICATION
| Model Name | 2way/3 way piston valve | Operating Pressure | 3.5bar（0.35Mpa） |
| Fluids | Steam, Water, Nitrogen, Air | Max Pressure | 4.0Mpa |
| Size | DN15-DN50 | Flow Characteristic | Linear / Equal % |
| Operation | Normal Close | Temperature | - 20°C to + 280°C |
| End connection | Flange(DIN, JIS、API) ;
Thread(BSPT, 1/2" DN15) |
Leakage rate | ISO 5208 Rate A |
| Mounting direction | Horizontal or vertical up |
