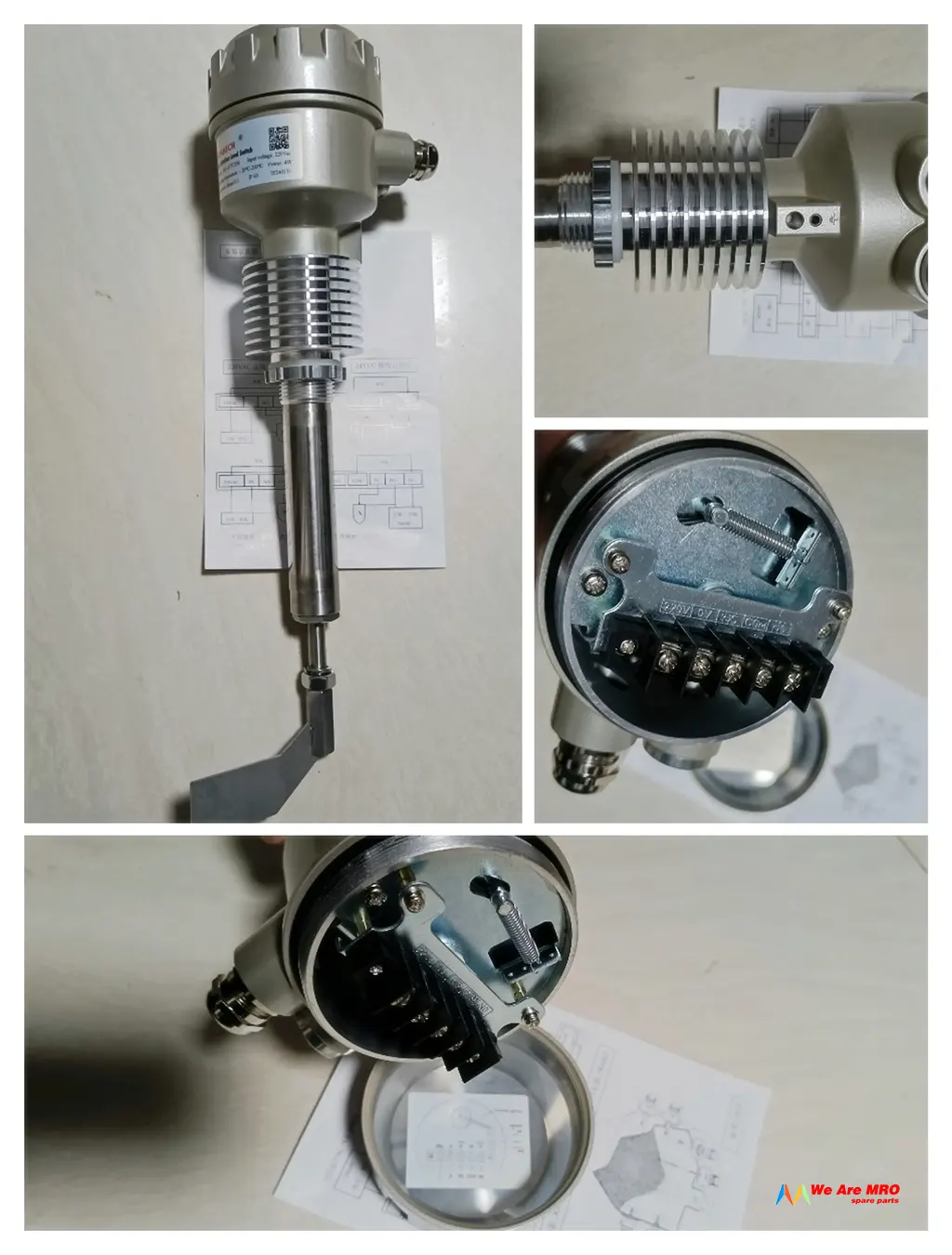

Anti Rotation Level Switch
High-temperature Anti Rotation Level Switch
Rotary paddle level switch, multiple paddle options.
Anti Rotation Level Switch
Model：R41-AFTC250 Input voltage: 220Vac
Operating temperature: – 20℃-200℃ Power: 4W
Connection: thread G 1 IP 65

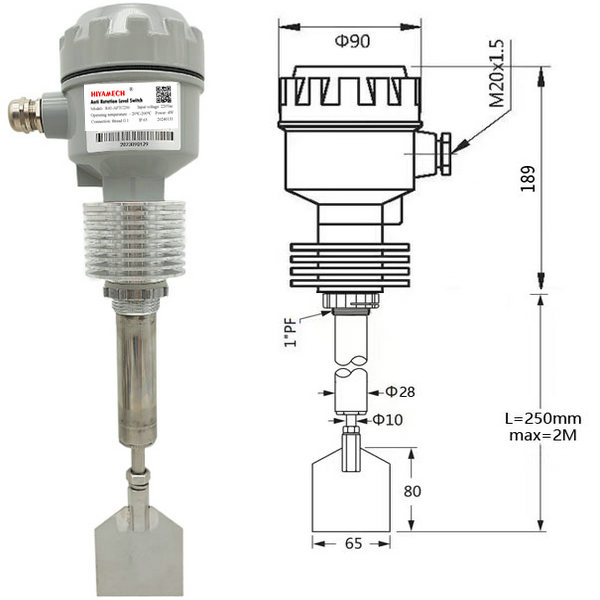

High temperature shaft protection threaded type
Power supply: 220VAC/110VAC/24VAC/24VDC
Contact capacity: 250VAC/10A SPDT (single pole double throw)
Power: 4W
Blade speed: 1RPM (revolutions per minute)
Torque: 1.0kgXcm
Material specific gravity: ≥ 0.5g/cm3
Working temperature: -10 ℃ -80 ℃ (up to 300 ℃)
Insulation resistance:>100 Μ Ω
Dielectric strength: 1500V * 1min
Protection level: IP65
Blade material: SUS304
APPLICATION
It is mainly used for automatic detection and control of various silos and material limits
cement powder, coal
chemical industry
Materials from all walks of life such as environmental protection and dust removal
