VP3W-FR25A 3-WAY PISTON VALVE

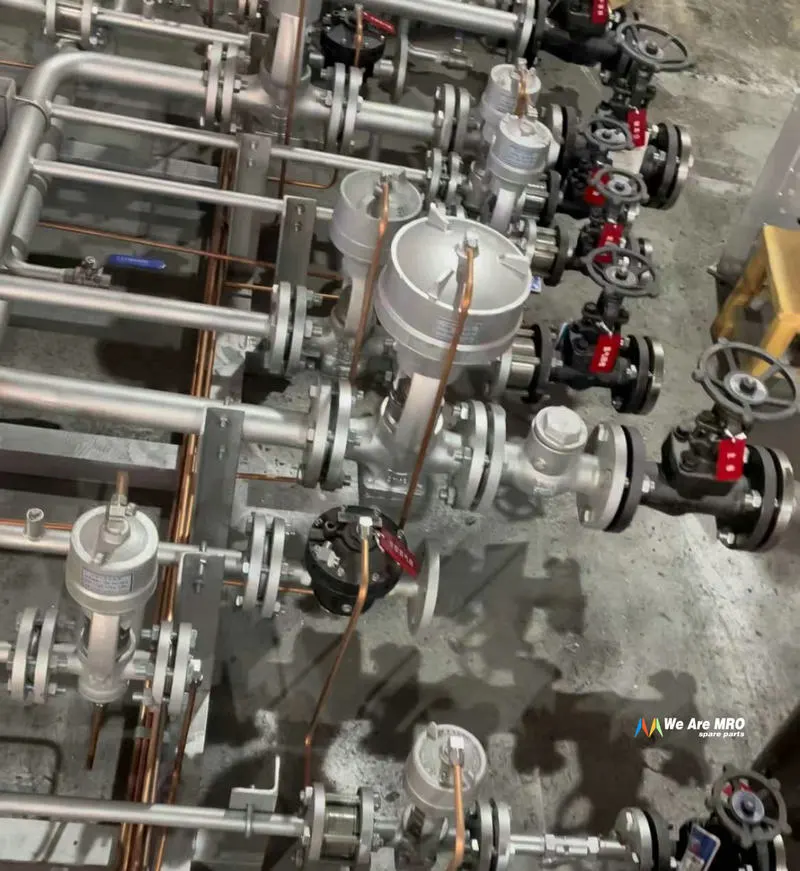

The pneumatic piston shut-off valve composed of stainless steel valve body, nodular cast iron cylinder and yoke is widely used for on-off control of steam, hot fluid, cold fluid and other media. Mainly for the purpose of reasonable and automatic control of vulcanizers producing tyres, plastics and other rubber products
SPECIFICATION
| Model Name | 2way/3 way piston valve | Operating Pressure | 3.5bar（0.35Mpa） |
| Fluids | Steam, Water, Nitrogen, Air | Max Pressure | 4.0Mpa |
| Size | DN15-DN50 | Flow Characteristic | Linear / Equal % |
| Operation | Normal Close | Temperature | - 20°C to + 280°C |
| End connection | Flange(DIN, JIS、API) ;
Thread(BSPT, 1/2" DN15) |
Leakage rate | ISO 5208 Rate A |
| Mounting direction | Horizontal or vertical up |
