LF08-00 Adjustable Restriction Valves

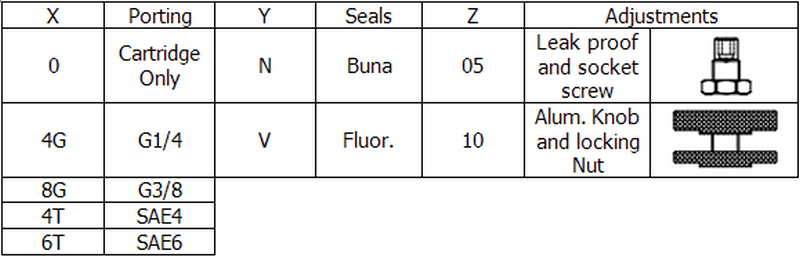

LF08-00/X.Y.Z
Specifications
|
Max. Working Pressure |
240 bar |
|
Flow Max |
35L/min at 7bar |
|
Internal Leakage |
＜0.3ml/min (When closed) |
|
Filtration of Oil |
25µm or better |
|
Temperature |
-30~ 100℃ (Standard Buna Seals) |
|
Cavity |
T4-1 |
|
Installation torque |
24.5~27.2Nm |
|
Standard Block Model |
T4-11*/ 13*/ 14*/ 16* |

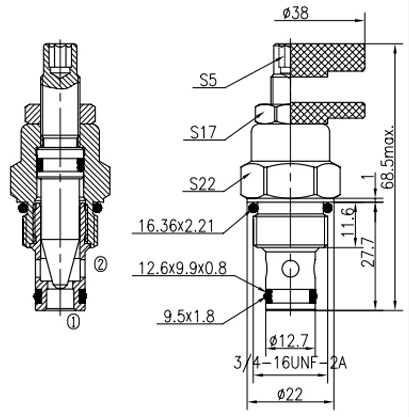

Description of the process
The valve reduce its orifice value form fully opened to fully close with clock-wise adjustment rotation. At the same time, the flow from max. to shut-off.
