XK3101 Weighing Indicator
XK3101-K quantitative packaging/electronic scale display/analog quantity/3101K weighing instrument display

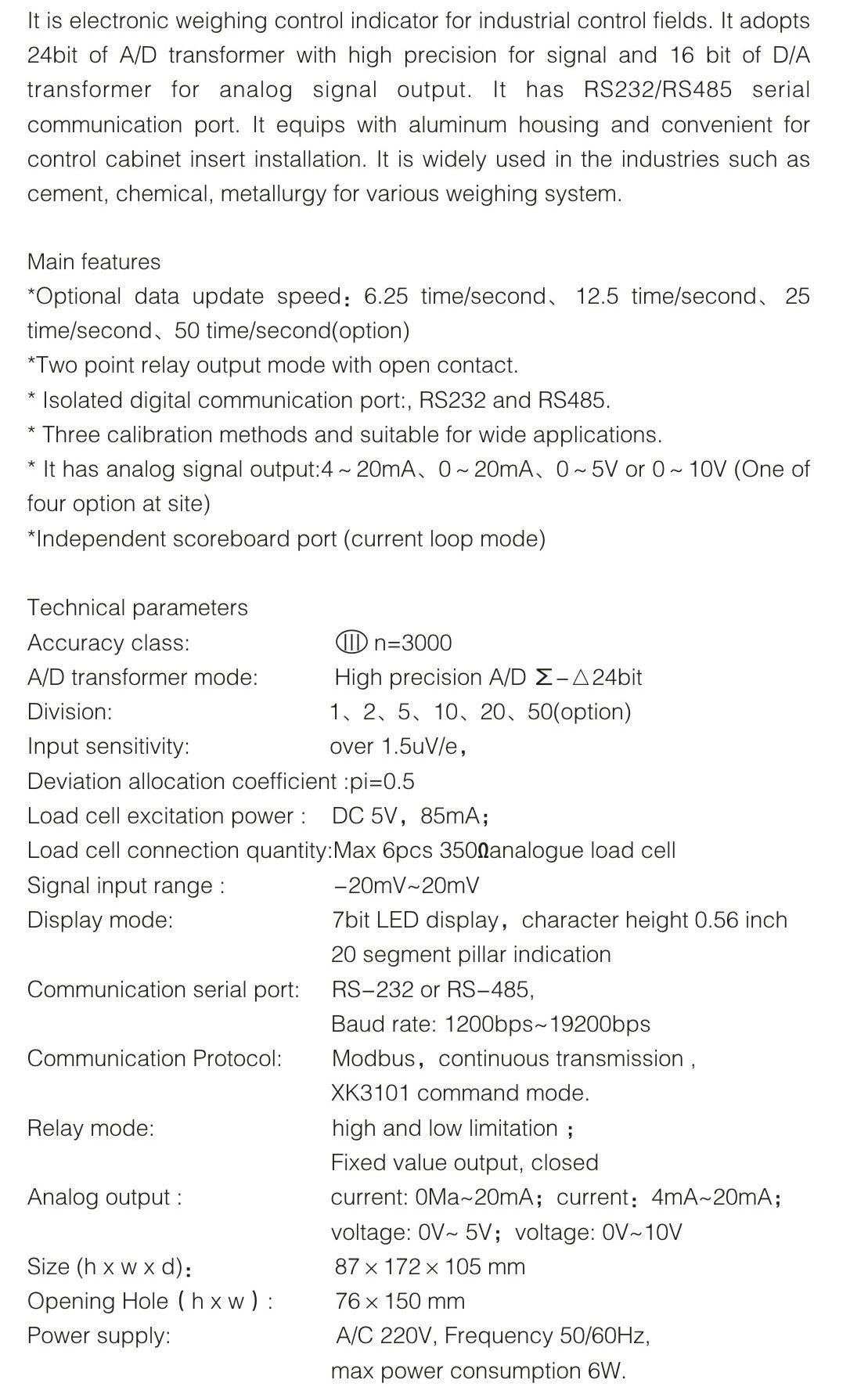

XK3101 is a weighing display controller for the industrial control field (or other applications that require analog output). It integrates weight display and analog signal output. The front-end signal processing uses a high-precision 24 bit dedicated A/D converter, and the analog signal output uses a 16 bit D/A converter. Adopting a compact disk mounted aluminum alloy shell, it can be easily embedded into the control cabinet.
Technical indicators
1. Load capacity
Excitation voltage: 5.0VDC, capable of driving six 350 analog sensors.
Analog current output: Max 500 Ω
Analog voltage output: Min 50K Ω
Relay contact capacity: AC 7A/250V, DC 12A/120V
2. Performance
Sensitivity: 1.0uV/d
Nonlinear: better than 0.01% FS
3. Power supply
Power supply voltage range: AC 187-242V, frequency 49-51Hz, maximum power consumption 6W.
The instrument has two communication methods: RS232 and RS485. When sending data through the serial port, both methods can be used simultaneously, and the data format is also the same. When receiving command data through the serial port, only one of them can be selected.
