EDG-01-H Relief Valve
Characters :
1.Simplify Hydraulic piping system, and improve traditional complicated piping of one pressure with one remote control valve.
2.Proportional coil produces stepless type of pressure upon input current to display the best function unifying Hydraulic and
electronic.
3.Good response function, min. momentary exciting pressure of pressure change to reduce piping resonance.
4,HNC Standard electronic controller HNC-1085 is recommended for customers's reference.
Specifications:
| Description Mode NO. | EDG-01 | |
| Max. Operation pressure (kgf/cm2) | 210 | |
| Max. Flow (L/min) | 2 | |
| Pressure Adjusting Range (kgf/cm2) | C | 8-140 |
| H | 10-210 | |
| Allowable Back-Pressure (kgf/cm2) | ||
| Rated Current (mA) | C | 750 |
| H | 700 | |
| Coil Resistance (Ω) | 10 | |
| Magnetic Hysteresis (%) | <3 | |
| Repeatability (%) | <0.5 | |
| Weight (kg) | 2 | |
Ordering Code
| EDG- | 01- | C- | * |
| HNC Oil pressure electric magnetic proportional guide adjusting valve | Valve caliber | C: 140KGF/CM2
H: 210KGF/CM2 |
Date of manufacturer |

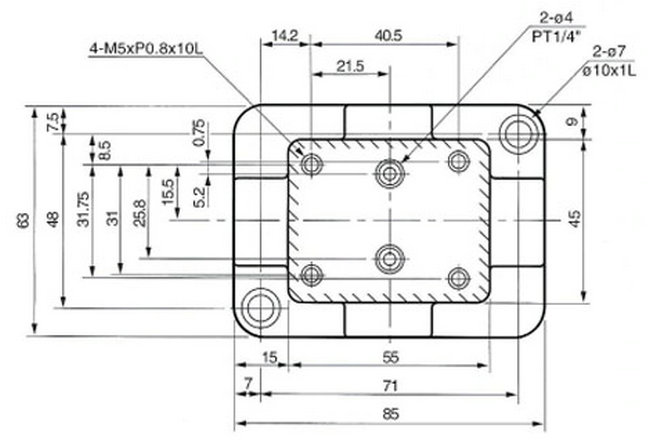

Dimensions
