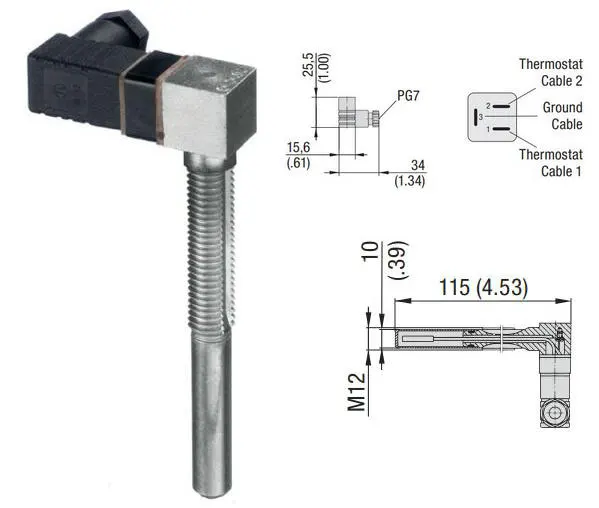

TS temperature switch
TS-SNA/SNK-O-60
Installation
Replaces the lower banjo bolt of the Level Gauge
Available for bolt size M12 only
Clearance hole: Ø13 mm / Ø.51 in
Maximum voltage: 250 V, 2,5 (1,6) A, 50 Hz
Maximum current at 2000 operations:
4,0 A at cos j = 4,45 / 250 V, 135 °C
Maximum current at 10000 operations:
2,5 A at cos j = 1,00 / 250 V, 150 °C
Minimum current: 20 mA
Thermo Switch TS for use with
Level Gauges SNA, SNK and SNKK
Contact switches at +80 °C / +176 °F
Break contact, opens at switching temperature (normally closed); Equipped with standard connector
standard connectorDIN EN 175301-803-C / ISO 6952
