F21-E1B Remote Control
Emission Power <10mW
ID Code 4.3 billion(32 bits)
Operating Temp. -35~80°C
Enclosure Nylon Fiber
Operating Distance Up to 100M
Transmitter Power 2 AA size Batteries
6 Pushbuttons single speed
Transmitter
Dimension: 164 x 75 x 46 mm
Weight: 380g
Receiver
Dimension: 185 x 85 x 85 mm
Weight: 550g
Power Supply: 24/48/110/220/380 VAC / 12~24 VDC
Suitable for industrial control remote control with single hook, single speed electric hoist or hoist type crane and up to 9 contacts.
With 8 operation buttons, including 7 single speed buttons and 1 total stop control point of 9
Equipped with a battery voltage warning device, it can automatically cut off the circuit when the voltage is insufficient. Security key switch to prevent unauthorized use.
Safety key with magnet, air freight not accepted.
Internal functions can be set through computer interfaces
Up/down, east/west, and south/north can be set to mutually suppress each other.
The backup 1 key can be set for functions such as power on, acceleration, press jump, and normal.

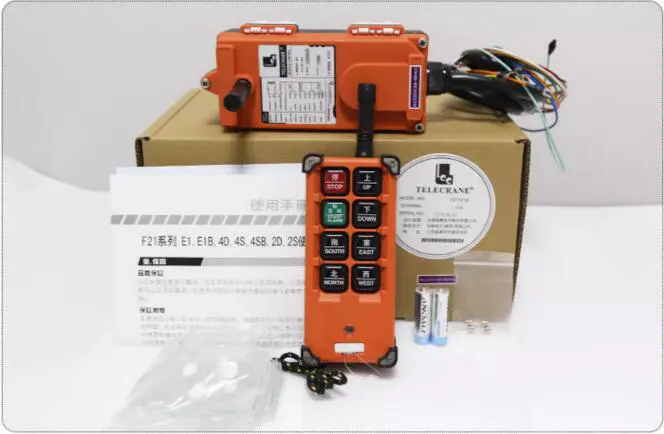

Packaging configuration:
1 transmitter (including strap)
Receiver 1
The receiver comes with a 1-meter connecting cable
1 operation manual
HIYAMECH –
What if the transmitter is lost? What should I do if the remote control is damage?
Just provide the SN identification code and CH frequency code on the back of the transmitter or receiver, and we will program and pair the transmitter for you. Once you receive it, you can use it directly
