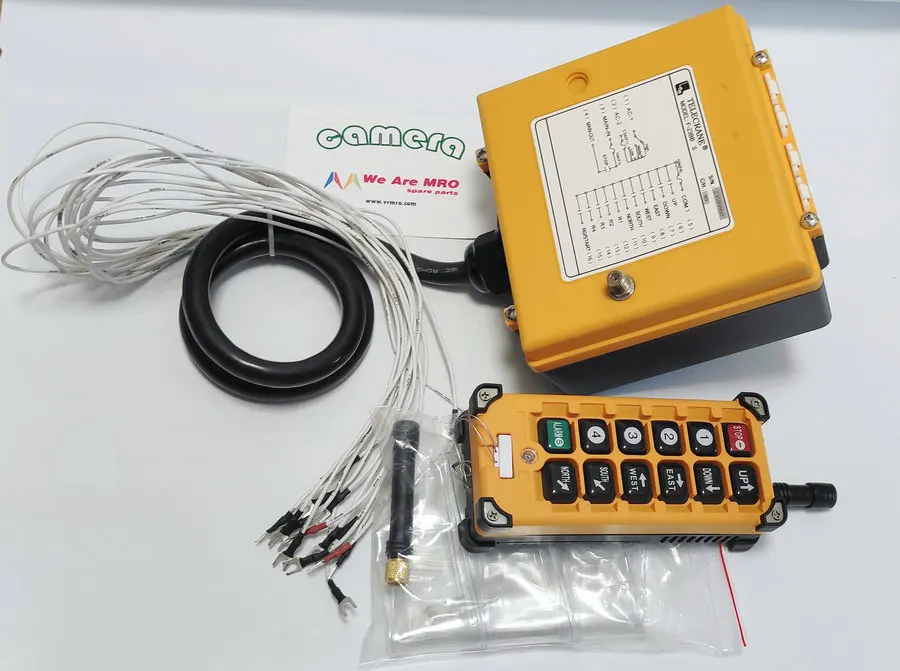

F23-BB S Crane Single Speed Remote Control
Transmitter
Size: 16.5 × 7.5 × 4.5 cm
Weight: 325g(without batteries)
Power: 2 AA size batteries
Weight: 325g(without batteries)
Power: 2 AA size batteries
Receiver
Size: 17.0 × 17.0 × 9.0 cm
Weight: 1720g(with wire cable)
Power Supply: (1) 24/36/48/110/220/380 VAC ±20％
(2)12~24 VDC
Weight: 1720g(with wire cable)
Power Supply: (1) 24/36/48/110/220/380 VAC ±20％
(2)12~24 VDC
1. Crystal series (80 frequency channels select 1)
2. 10 single step buttons, 1 start button, 1 stop button
and 1 magnetic key
3. Non-repeated 4.3 billion sets ID code
4. Low power consumption transmitter
5. Temperature range : -35°C ~ +85°C
6. Powerful function setting software(optional)for
easy customized configuration
7. Material : Nylon +30% Glass-Fiber
8. Standard configuration:
* Transmitter(with Protection cover)*1
* Receiver*1
* User manual* 1
2. 10 single step buttons, 1 start button, 1 stop button
and 1 magnetic key
3. Non-repeated 4.3 billion sets ID code
4. Low power consumption transmitter
5. Temperature range : -35°C ~ +85°C
6. Powerful function setting software(optional)for
easy customized configuration
7. Material : Nylon +30% Glass-Fiber
8. Standard configuration:
* Transmitter(with Protection cover)*1
* Receiver*1
* User manual* 1
