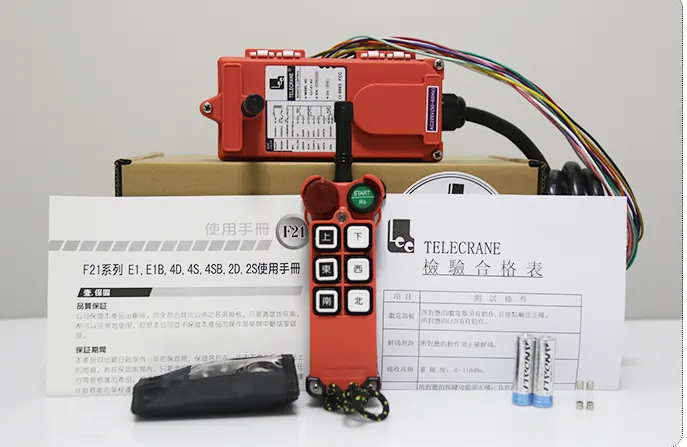

F21-E1 REMOTE CONTROL Crane Controller
F21 series wiring diagram
F21-4D; F21-4S/4SB; F21-E1/E1B; F21-2D; F21-2S

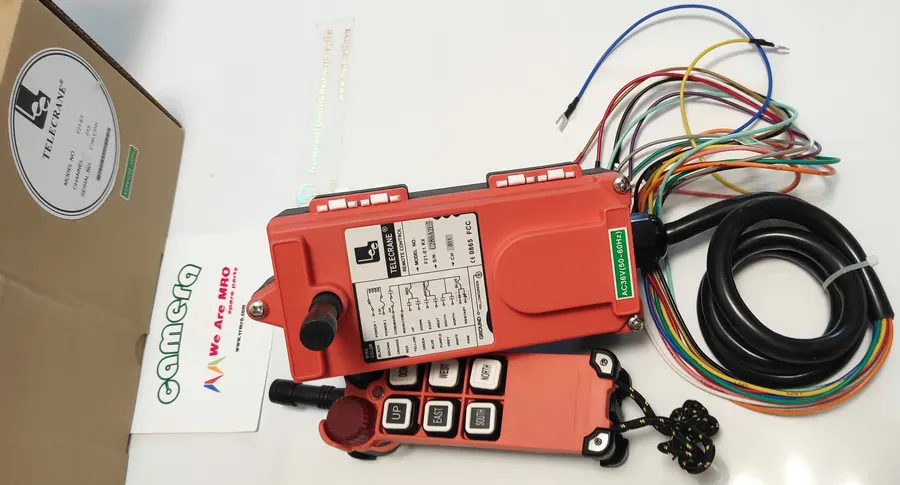

F21 REMOTE CONTROL
model:F21-E1
Shell material:Glass fiber reinforced nylon
frequency range: VHF: 310-331MHz, UHF: 425-446MHZ
Protection level: IP65
Receiver power supply:10 Amp fully sealed relay output
Security code: 32-bit (4.3 billion sets never repeated)
Receiver sensitivity: -110dBm;Remote control distance can reach 100 meters
Functional characteristics
1: The transmitter has 7 function buttons [1 start button+6 single speed buttons] and 1 emergency stop button
2: Equipped with a battery voltage warning device, the circuit automatically shuts off when the voltage is insufficient to ensure safety
3: The function of using a data cable to connect to a computer's custom buttons (jog, press jump, interlock, etc.)
4: Equipped with mushroom head emergency stop knob, emergency stop can be used to ensure safety
Suitable for industrial control use in cranes, cranes, CD hoists, cranes, and up to 6 contacts.
LI zongya –
What if the transmitter is lost? What should I do if the remote control is broken?
Just provide the SN identification code and CH frequency code on the back of the transmitter or receiver, and we will program and pair the transmitter for you. Once you receive it, you can use it directly
