F24-12D Dual speed Crane Remote Control
Product Description
Suitable for industrial control remote control of MD double speed electric hoists or double speed hooks, double hook/multi speed cranes, gate cranes, bridge erecting machines, etc. with less than 25 contacts.
Launcher (handheld)
Size: 18.6x6.1x5.1 cm
Weight: approximately 255 grams

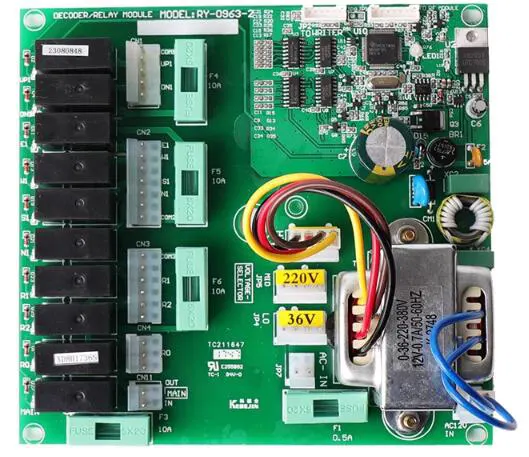

Receiver
Size: 25.3x26.7x15 cm
Weight: 3000 grams
Detailed introduction:
12 function buttons (two-stage buttons)+mushroom head emergency stop+start key
Up to 25 control points
Equipped with a battery voltage warning device, it can automatically cut off the circuit when the voltage is insufficient.
Secure rotary key switch to prevent unauthorized use.
The reinforced plastic shell made of nylon and woven fabric can prevent damage caused by falls and strong collisions.
The enhanced model is equipped with a two-stage button, which adopts a fully sealed integrated dual speed button, with a longer service life and better feel. The main stop button adopts a self-locking red "mushroom head" button, further emphasizing the overall safety factor.
HIYAMECH –

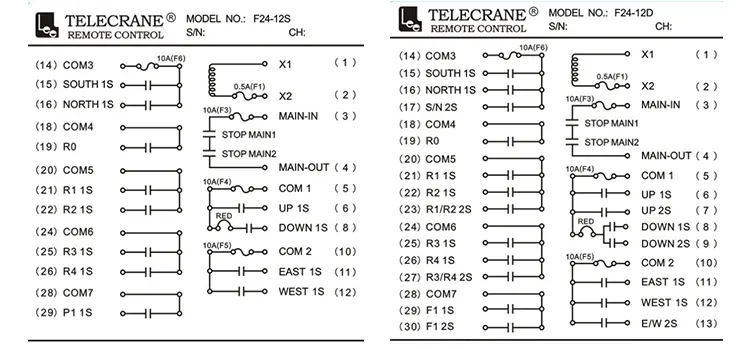

What is the difference between F24-12S and F24-12D?
HIYAMECH –
Although the two remote controls have the same appearance, the F24-12S has 12 single speed buttons and the F24-12D has 11 dual speed buttons (one key dual speed light press and heavy press)
